MP-Series MPPT Solar Charge Controller Efficiency 99% Solar Power Supply System

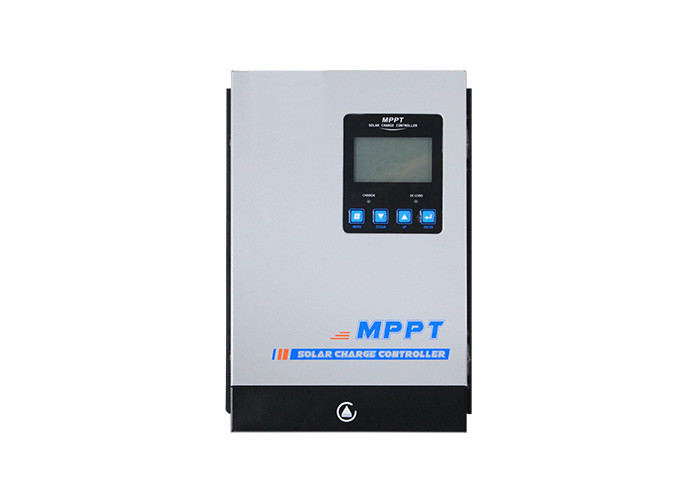

JET-MP Series MPPT Solar Charge Controller
Taking the Maximum Power Point Tracking technology (MPPT)
Common negative design
LCD displaying running status
Artistic, economical and practical.
With the adaptive three-stage charging mode based on a digital control circuit, The controllers can effectively prolong the life-cycle of batteries, significantly improve the system performance and support all-around electronic protection functions, including overcharging and over discharging protection to minimize damages to components of the system caused by incorrect installation or system failure at the utmost, and effectively ensure safer and more reliable operation of the solar power supply system for a longer service time. This modular solar controller can be widely used for different applications, e.g., Communication base stations, household systems, and field monitoring, etc.
- Smart MPPT control algorithm to minimize the lost.
- High-efficacy DSP control CS built-in, no less than 99% guaranteed.
- Automatic identification the battery voltage,
- Real time energy statistics function.
- RS485 communication interface.
- Reverse connection for both battery and PV.
- Intelligent battery management technology.
- 3-stage charging.
Specification
| Model | | MP20A | MP30A | MP40A | MP50A | MP60A | MP80A | MP100A | MP120A |
| Work Voltage | 12V System | 18~80VDC |
| 24V System | 30~100VDC |
| 36V System | 40~100VDC |
| 48V System | 60~150VDC |
| 96V System | 120~200VDC |
| Max PV Voltage | 12/24/36/48/96V | 200VDC |
| Max PV Power | 12V System | 280W | 420W | 570W | 700W | 900W | 1140W | 1400W | 1800W |
| 24V System | 550W | 840W | 1130W | 1400W | 1700W | 2260W | 2800W | 3400W |
| 36V System | 840W | 1260W | 1710W | 2100W | 2700W | 3420W | 4200W | 5400W |
| 48V System | 1100W | 1650W | 2270W | 2800W | 3400W | 4540W | 5600W | 6800W |
| 96V System | 2240@ | 3360W | 4560W | 5600W | 7200W | 9120W | 11200W | 14400W |
| Connected Battery Type | 12/24/36/48/96V | VRLA/AGM/GEL |
| Rate Current | 20A | 30A | 40A | 50A | 60A | 80A | 100A | 120A |
| Max Charge Current | 22A | 32A | 42A | 52A | 62A | 82A | 102A | 122A |
| Max Efficiency | ≥ 99% |
| Temperature Compensation | -3mV/℃ |
| Charging Mode | 3-stage: Constance Current (MPPT), Uniform, Float |
| High Temperature Protection | 90℃ |
| LCD Display | PV Voltage, Charge Current, Battery Voltage, Realtime Power Generation, Daily Power Generation, Total Power Generation |
| LED Indication | Charge Light, DC Output Light |
| Communication Port | RS485 (optional) |
| Working Environment | < 90%RH Non-condensate, working at -20~60℃, storing at -20~60℃, Attitude 0~3500m |
| Dimension (mm) | 191x215x89 | 230x279x91 | 230x304x91 | 303x436x138 |
| Net Weight (kgs) | 2.2 | 3.2 | 3.4 | 10.5 |
| Protection Grade | IP31 |
MPPT:
Minimize the maximum power point loss rate and loss time, quickly track the maximum power point of the PV array and obtain the maximum energy from solar modules under any conditions; and can increase the ratio of energy utilization in the solar system by 10%-30% compared with a PWM charging method. The limitation function of the charging power and current and reducing charging power function automatic improve the stability which works even connecting oversize PV modules and in high temperature, and increase the professional protection chip for the communication port, further improving the reliability and meeting the different application requirements.
